xiamen ZONEWU LoRaWAN Solar Soil EC Sensor, a three in one sensor for humidity, temperature, and conductivity (EC), designed specifically for precision agriculture. It can penetrate deep into the soil, accurately detect soil temperature, humidity, conductivity, and other values in real time, with minimal measurement error, and is powered by solar energy.
Model Produk :
LW501S-ECMod Bekalan Kuasa :
Solar Powered + Li-ion BatteryKekerapan :
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4Versi MAC :
LoRaWAN 1.0.3Mod :
OTAA Class ABerat badan :
230gLoRa Solar Soil Electrical Conductivity (EC) Sensor
xiamen ZONEWU LoRa Soil EC Sensor is a wireless IoT sensor that integrates data collection, monitoring, and transmission.
xiamen ZoneWu LoRa Solar Soil EC Sensor Features:
This solar soil sensor integrates three core parameter measurement functions: soil conductivity, temperature, and humidity. It can accurately capture data on soil salt concentration and temperature and humidity changes, providing comprehensive and accurate basic data support for soil environment analysis.
Using aviation connectors as equipment interfaces, it has high reliability and strong protection characteristics, can adapt to complex outdoor environments, ensure stable connection between sensors and LoRaWAN collectors, and guarantee the security and durability of data transmission links.
Building wireless communication links based on LoRa technology, combined with LoRaWAN collectors, to form a low-power wide area network communication system, breaking through the limitations of traditional wired transmission, achieving long-distance wireless transmission of sensor data, and reducing deployment costs and construction difficulties.
Based on the low-power characteristics of LoRa technology and combined with solar power supply systems, sensors can achieve long-term, low-energy operation; Simultaneously supporting wireless remote data transmission, it can quickly send monitoring data to the central system, meeting the needs of real-time data collection and management.
In the field of agriculture, sensor monitoring data provides decision-making basis for precision irrigation and scientific fertilization, helping users adjust water and fertilizer supply according to the actual soil conditions, avoid excessive use of water resources and fertilizers, reduce production costs, and improve agricultural production efficiency and resource utilization.
In addition to agriculture, this sensor is also widely used in horticultural planting and environmental monitoring scenarios. By continuously monitoring soil conditions, providing a suitable growth environment for horticultural plants and helping to improve crop quality; In environmental monitoring, it can be used for soil state analysis in ecological protection areas, maintaining ecological balance, and promoting sustainable development.
Product Parameters
|
Power Supply
|
Solar Powered + Li-ion Battery
|
|
LW501S Weight
|
230g |
|
Work Environment
|
Temperature: -30 ℃ to 70 ℃; Humidity: ≤ 95% RH
|
|
Measuring Range
|
Humidity：0%RH-100%RH
0-50% inner soil 2%, 50-100% inner soil 3%
(brown soil, 60%. 25 ° C)
|
|
Temperature：-40°C~+80°C,±0.5℃(25°℃)
|
|
|
EC: 0-20000us/cm
Within the range of 0-10000 US/cm, it is ± 3%; Within the range
of 10000-20000us/cm, it is ± 5%. (Brown soil, 60% RH, 25 ° C)
|
|
|

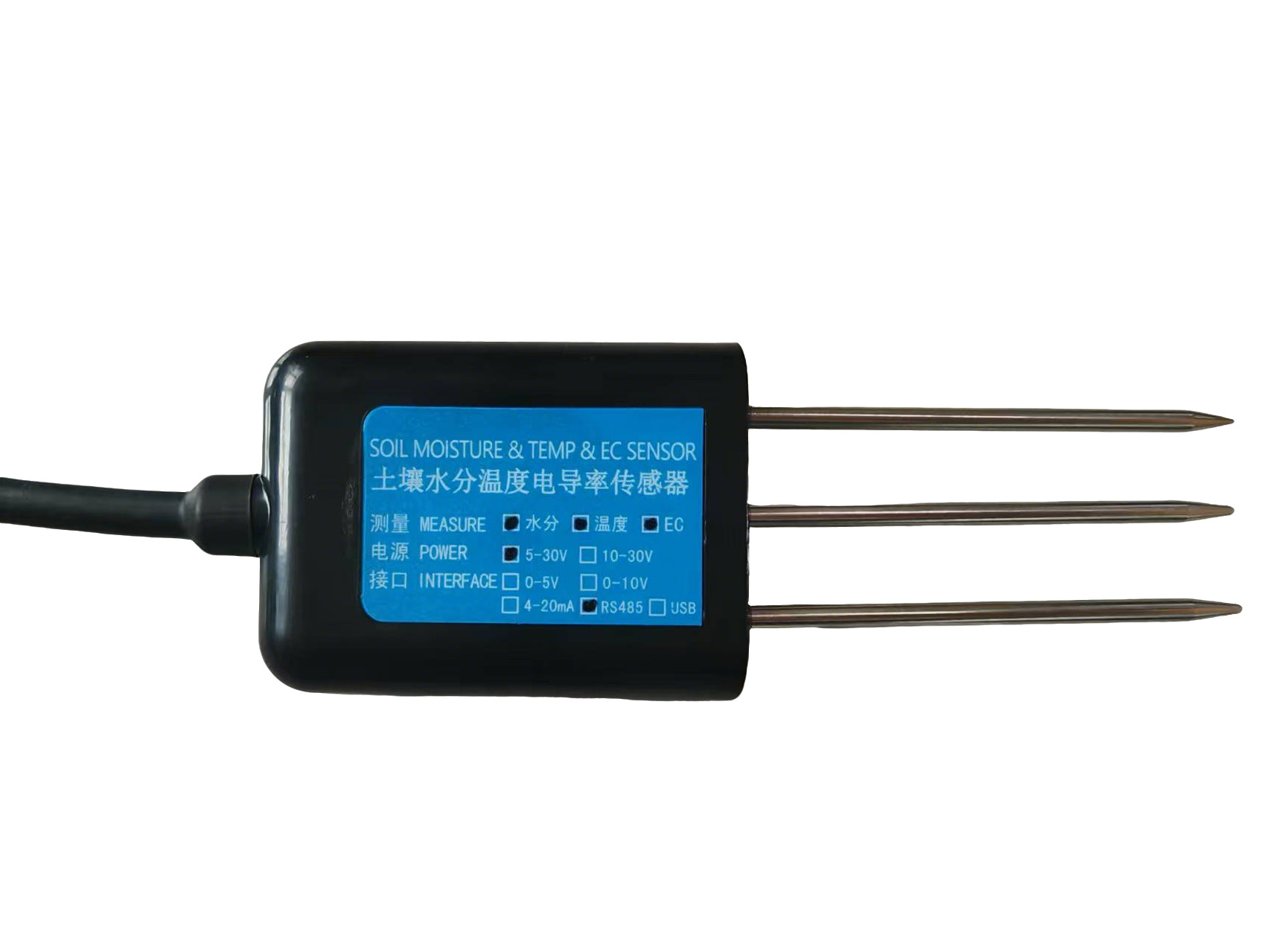

EC Sensor External
Dimensions
|
45*15*123mm
|
|
Steel Needle Material
|
Stainless Steel
|
|
Sealing Material
|
Black flame retardant epoxy resin
|
|
Transmitter
Line length
|
Default 2m (other lengths can be customized)
|
|
Frequency
|
CN470/IN865/EU868/RU864/US915/AU915/
KR920/AS923-1&2&3&4
|
|
Mode
|
OTAA Class A
|
|
Reporting cycle
|
≤5 years （Depending on the on-site lighting conditions）
Note: Due to the high power consumption of EC sensors, it is
not recommended to use short-term data reports for a long time
|
|
Communication Protocol
|
LoRaWAN
|
|
Equipment information
(Reference)
|
AppEUI：0000000000000001
DevEUI：aaaa202404150001
AppKey：00001111222233334444555566667777
MAC Version：LoRaWAN 1.0.3
|
Product Applications
Detailed Images
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
Why Choose ZONEWU
xiamen ZONEWU This Wireless LoRa Soil Electrical Conductivity (EC) Sensor is a reliable and responsive three in one wireless networking device. It can measure the dielectric constant of soil and directly and stably determine the true moisture content in different soils through this data. The measured value is the proportion of soil moisture by volume, which is in line with the internationally recognized standards. And it supports standard protocols such as LoRaWAN, which enables wireless remote data transmission and is very convenient to use.
