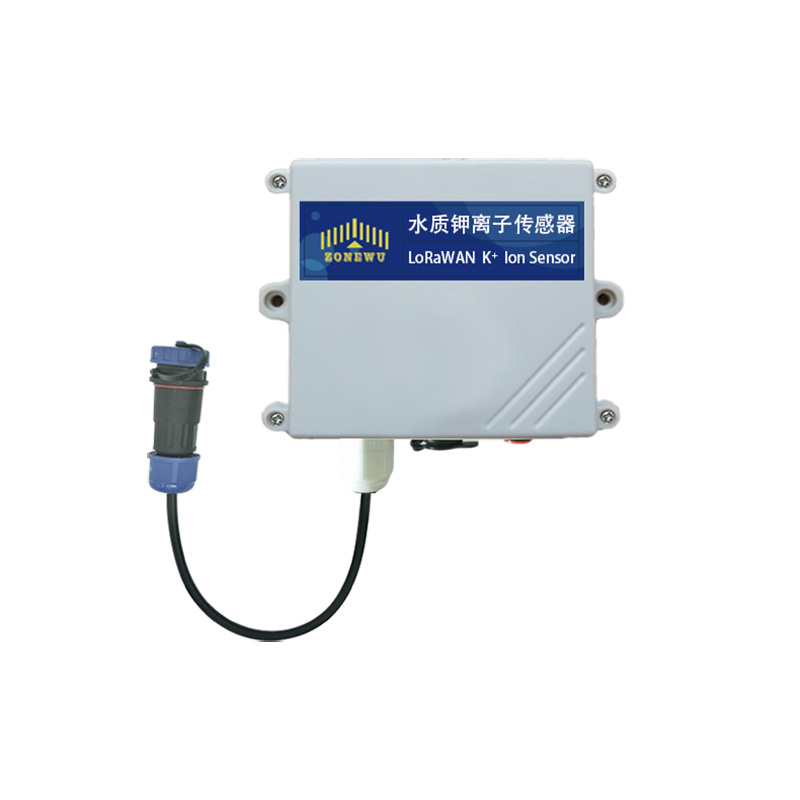

Long-term Online LoRaWAN Water Quality K+ Ion Sensor

Long-term Online LoRaWAN Water Quality K+ Ion Sensor

xiamen ZONEWU  LoRaWAN Water Quality K+ Potassium Ion Sensor, belonging to wireless IoT devices. It will adjust data according to temperature changes on its own, and is not afraid of light interference. It can transmit data over long distances through the LoRaWAN protocol, collecting monitoring data and sending it in real time, making it particularly suitable for long-term online monitoring of water quality

  • Model Produk :

    LW114-K+
  • Mod Bekalan Kuasa :

    Battery or External DC
  • Kekerapan :

    CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
  • Versi MAC :

    LoRaWAN 1.0.3
  • Mod :

    OTAA Class A/C
  • Berat badan :

    150g

Long-term Online LoRaWAN Water Quality K+ Ion Sensor



xiamen ZONEWU LoRaWAN Water Quality K+ Ion sensor can wirelessly measure the amount of potassium ions in water using LoRaWAN.

xiamen ZoneWu LoRaWAN water Quality K+  Ion Sensor Features:



This sensor can automatically calibrate the measurement data according to temperature changes, regardless of whether it is hot or cold, and the measured data is more reliable



Because of its ability to automatically adjust temperature, it is not afraid of the surrounding environment changing, and can work steadily in any environment



Compared to devices without this feature, it measures more accurately and can measure ion concentration more precisely



It is very easy to connect with the LoRaWAN collector, just plug it in with an aviation plug, and the connection is very stable after plugging in, and the signal transmission does not shake



After connecting it, data can be transmitted wirelessly without pulling wires. Information can be transmitted in a blink of an eye, which is convenient and hassle free



It can detect and analyze whether industrial wastewater meets standards, whether surface water is dry or not, whether drinking water can be consumed directly, the quality of seawater, and how to control ion concentration in industrial production



Product Parameters



Power Supply 12/24VDC
Weight 150g
Operating Temperature 0~40℃
Measuring Range

0-100mg/L

Ionic sensors are more susceptible to interference from other ions in the water

and can easily cause membrane head failure. Please purchase with caution !

Measurement Error ±5%FS(25℃)
Resolution Ratio 0.01mg/L
Temperature measurement range

0~50℃,Resolution Ratio:0.1℃

(When manually compensating for temperature, it is set to 25 ℃ by default.)

Probe usage cycle 3-6 months
Pressurization 0.6Mpa

Transmitter

Line length

Default 5m (other lengths can be customized)
Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode OTAA  Class A/C
Reporting cycle 5min(Default )

Communication Protocol

Equipment information

(Reference)

LoRaWAN,LoRa TDMA Networking

AppEUI:0000000000000001

DevEUI:aaaa202404150001

AppKey:00001111222233334444555566667777

MAC Version:LoRaWAN 1.0.3

Product Applications

1.Reliable measurement: It can accurately determine how many potassium ions are in water.

2.Super fast response: As soon as the potassium ion concentration changes, it can be detected immediately.

3.Not afraid of disturbance: Other ions and environmental interference have little impact on it.

4.Easy to get started: The detection operation is simple and does not require complicated steps.

5.Stable performance: Even after a long period of use, the measured data remains accurate.

6.Strong compatibility: It can be compatible with any monitoring device and system.

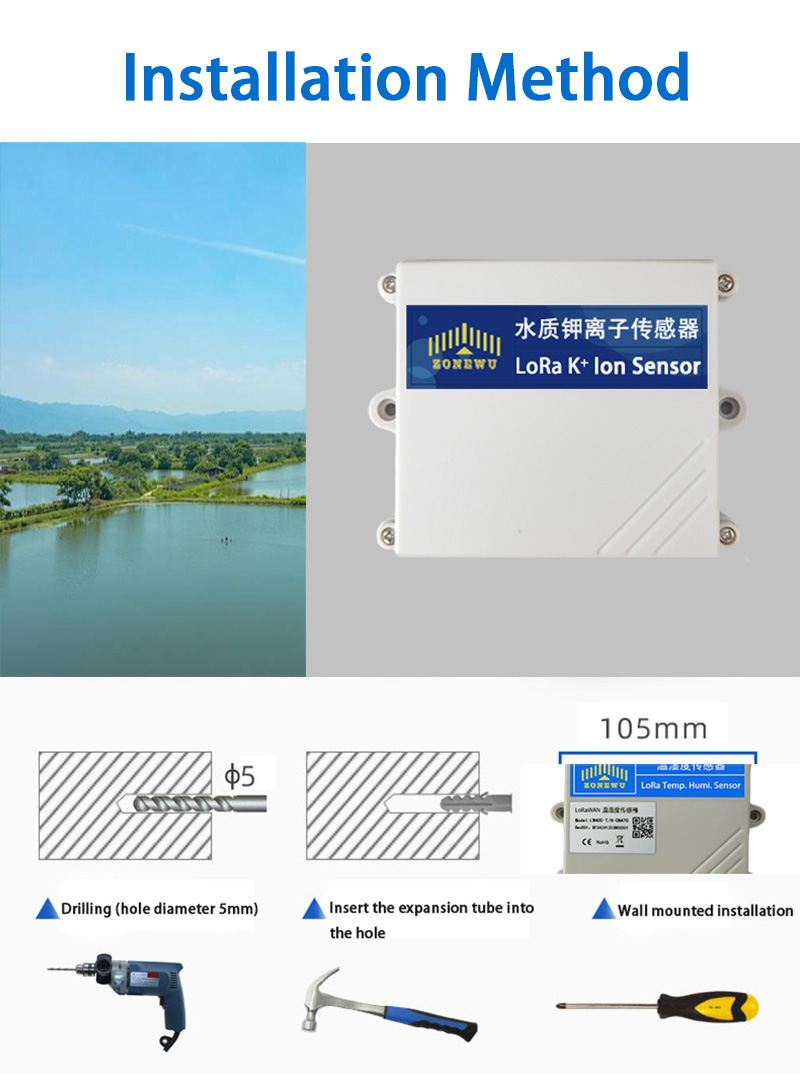

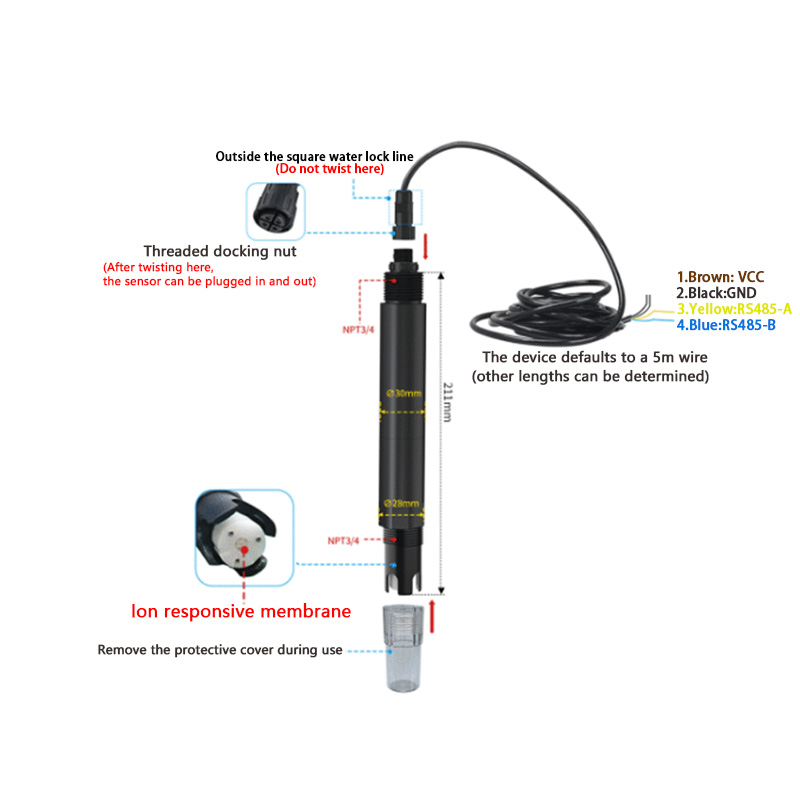

K+ Ion Transmitter Size and Installation

  1.Submerged installation: The lead wire of the equipment is passed through

the waterproof pipe, and the 3/4 thread on the top of the equipment is connected

with the 3/4 thread of the waterproof pipe with raw material tape.Make sure that

the top of the equipment and the equipment lines are free of water.

2. Pipe Installation: Connect to the pipe through the 3/4 thread of the device.

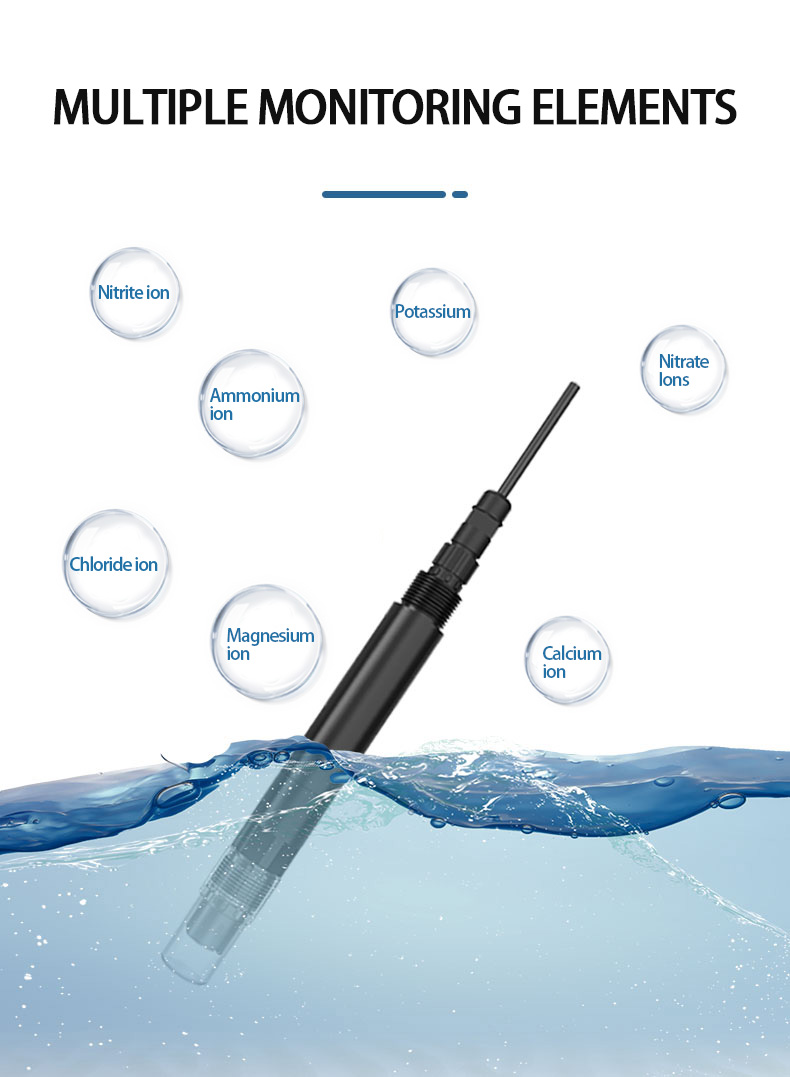

Detailed Images

Common knowledge of  K+   Ion


What is the use of potassium ions in water? Why is it called a "health barometer" for water quality? ​

Potassium ions (K ⁺) are naturally occurring "electrolyte members" in water. Just like potassium ions in human blood are necessary to maintain heartbeat, the concentration of potassium ions in water can also reflect the water quality status. The concentration of potassium ions in natural water bodies generally ranges from 1 to 10mg/L. If there is a sudden surge, it may be due to industrial wastewater (such as drainage from fertilizer plants and electroplating plants) being secretly discharged into the water, or pesticides from farmland being washed into rivers with rainwater. At this time, it is important to be alert to water pollution.


What are the requirements for measuring potassium ions in water? Why can't we just look at one number? ​
Potassium ion concentration is a "multifaceted mirror" for judging water quality, but when measuring it, one must understand the "tricks":
Industrial wastewater: Potassium ions>50mg/L may be mixed with potassium fertilizer or potassium containing cleaning agents, and the discharge outlet should be checked; ​
Surface water: Sudden increase may be due to the inflow of potassium fertilizer from farmland with rainwater, and it is necessary to consider indicators such as ammonia nitrogen and phosphorus to determine whether it is eutrophic; ​
Seawater: Potassium ions are already high (about 380mg/L), but abnormal fluctuations may indicate red tide or marine pollution. ​
Moreover, water temperature and pH value can interfere with the measurement, so sensors with temperature compensation (such as LoRaWAN potassium ion sensors) need to be used for real-time data calibration.


How many potassium ions in the water are considered excessive? Is there a safety standard? ​
Different scenes have different 'red lines':
Drinking water: The World Health Organization (WHO) recommends that potassium ions should be less than 10mg/L (too high can cause bitterness). Although China's "Drinking Water Standards" do not impose a mandatory limit, caution should be taken when exceeding 20mg/L to prevent water source pollution; ​
Fishery water: Potassium ions>50mg/L can affect the osmotic pressure of fish, leading to gill damage. Aquaculture is usually controlled at 10-30mg/L; ​
Industrial circulating water: Potassium ions>100mg/L are prone to scaling, and reverse osmosis membranes are commonly used in power plants to "reduce potassium" and ensure that equipment is not blocked.


What kind of artifact are used to measure potassium ions now? How to achieve both speed and accuracy? ​
Nowadays, the popular "wireless intelligent detective" - LoRaWAN potassium ion sensor, is like an underwater "chemical tongue":
Probe will taste: Use an ion selective electrode (ISE) to "lick" water and measure potassium ion concentration within 10 seconds; ​
Anti interference expert: The built-in chip can filter out the "disturbance" of calcium and magnesium ions, even if there are many impurities in the water, it will not affect it; ​
Wireless carrier pigeon: No need to pull wires, data can be transmitted several kilometers away with LoRaWAN protocol, and water quality changes can be monitored on mobile phones at any time, which is 10 times faster than traditional manual sampling!



Application Scenarios

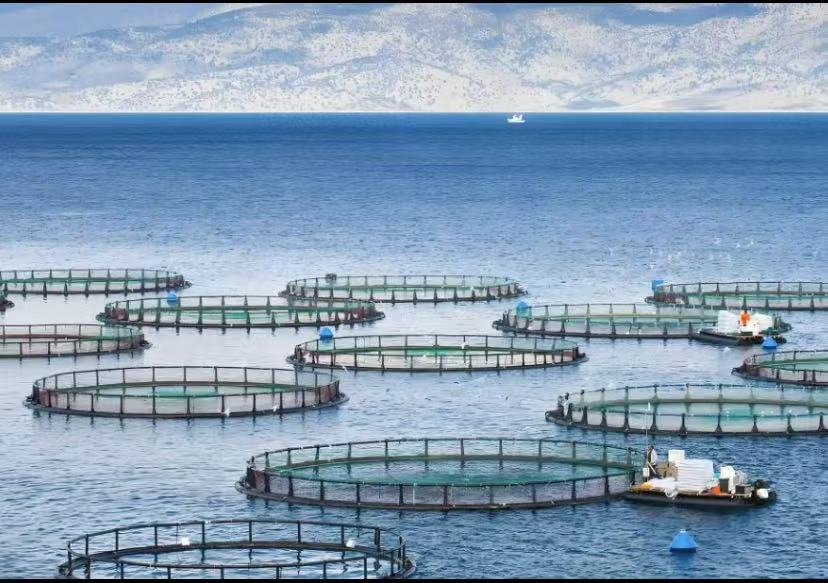

Aquaculture

Monitor the calcium ion concentration of aquaculture bodies to ensure the health of aquaculture organisms and the stability of water quality.



Seawater Monitoring

Monitoring the concentration of calcium ions in seawater is conducive to marine ecological research and the regulation of seawater aquaculture.

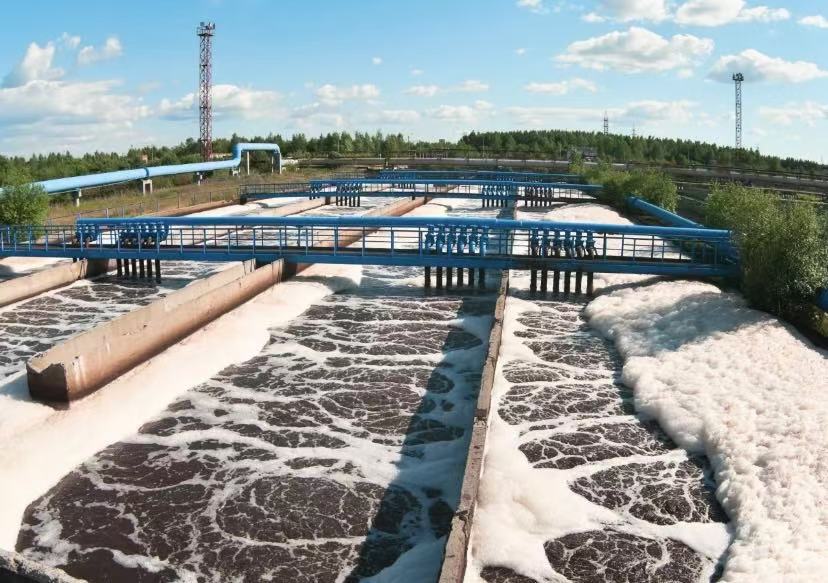

Industrial Wastewater

Monitoring the concentration of calcium ions in industrial wastewater helps with wastewater treatment and achieving compliance with discharge standards.


FAQ
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.



3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.



Why Choose ZONEWU

  • Professional IoT Sensor Manufacturer
    Specializes in R&D, production, and sales of IoT sensors with strong technical expertise
  • High Quality and Reliability
    Products certified with international standards (e.g., CE, RoHS), ensuring high quality and long lifespan.
  • Wide Range of Applications
    Products serve diverse industries such as water quality monitoring, environmental monitoring, and industrial automation, offering strong market adaptability.
  • Advanced Technology
    Utilizes cutting-edge communication technologies like LoRaWAN and NB-IoT for remote, low-power data transmission.
  • Customized Solutions
    Provides tailored products and OEM/ODM services to meet diverse application needs.
